KTM 250GS 1981

In total, when I bought it, I thought that only the motoplat ignition system where broken.
I fould a NOS (New Old Stock) motoplat, mounted it and she started. The engine did run real nice
once I sorted out a carb problem caused by an earlier owner.

Then I discovered that the lower fork slider on the right side was cracked just below the wheel
axel. After failed welding attempts I dug up a parted out aprilia with the very same fork.
The fork was ok but then I discovered this odd looking bulb on the front of the engine case.
There I found some plastic padding putty covering a crack and covered with silver paint.
I tried to weld that too but it didn't work out!

The project where put on a hold for a while when I started to locate bits'n pieces. I have been
very fortunate to find practically everything. Tom G in switzerland found an engine that I got
along with some other pieces. Dr2.Stroke could provide the rear fender which is very hard to find.
Thanks to them and everybody that has provided advice, encouraging words and info!

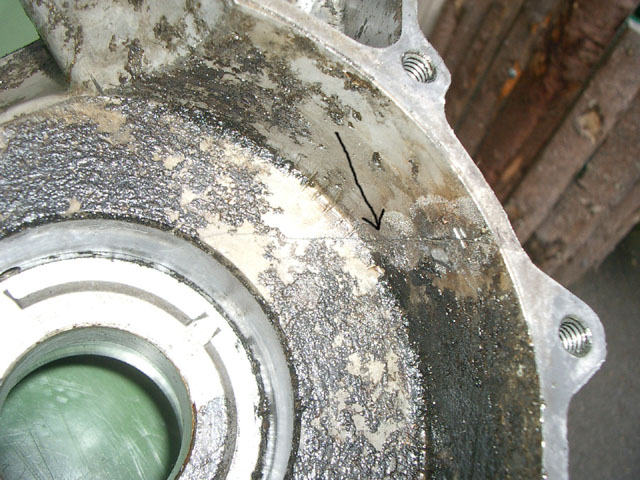

Below, crack at the black arrow.

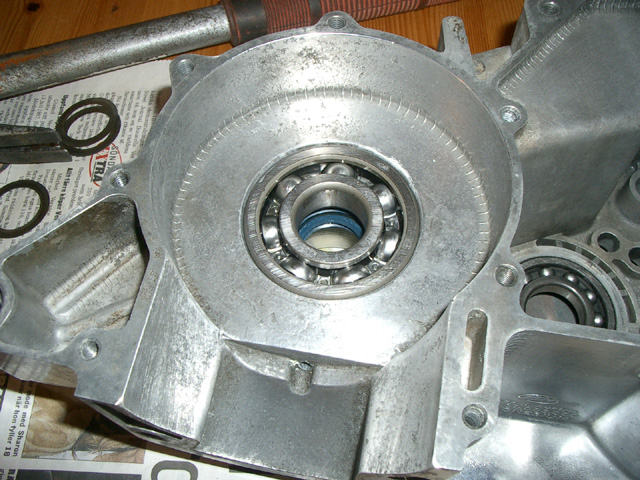

New case, with 6305 C3 plain ballbearing insted of M25.
Warning! This installation has proven to fail. Never use deep groove ball bearings as a replacement of the magneto bearing.

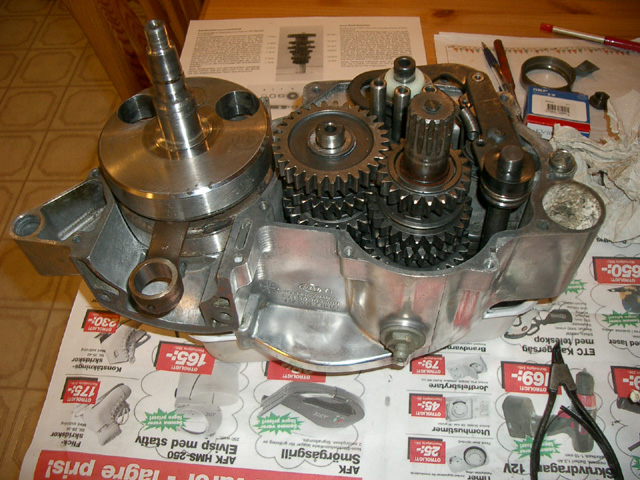

Left case completed with crank and gearbox!

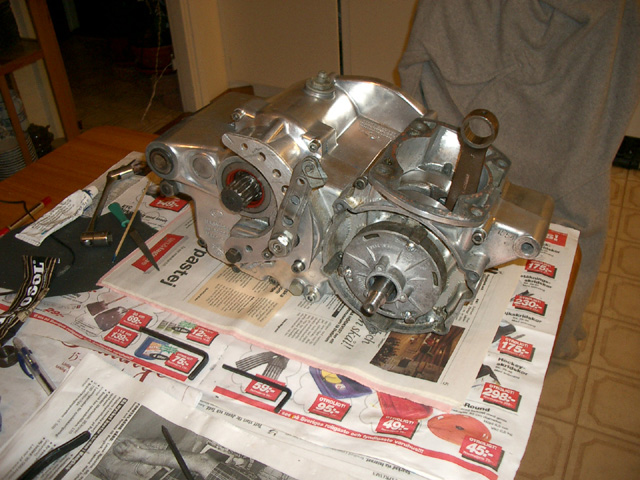

Completed lower end in the kitchen, polished some :-)
